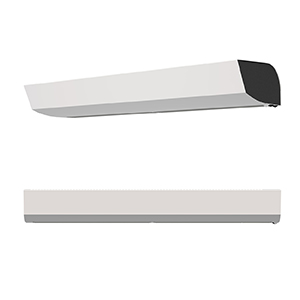

Ostro ONE is a modern stylish air curtain designed for applications with smaller entrances such as schools, shops, cafes and restaurants.
- Suitable for applications where only single-phase electrical supply is available
- Features a built-in motion sensor and controls
- Two versions are available – Ostro ONE C and Ostro ONE E
- Compact unit – 1100mm wide x 281mm deep x 155mm high
- Quiet operation
- Supplied with flying lead
- Up to 5x Ostro ONE E can be controlled by optional Panel Comfort Controller
Ostro ONE C (fan only air curtain)
- Air throughput from 1200 – 2100 m3/hr
- Low noise levels – 56dB at maximum fan speed
- Low weight – 11.7 kg
- Motion sensor built-in
Ostro ONE E (electric air curtain)
- Heat output – 3kW
- Single-phase electrical supply
- Air throughput from 1050 – 1950 m3/hr
- Low noise levels – 56dB at maximum fan speed
- Low weight – 12.9 kg
- Motion sensor built-in
- Optional Panel Comfort – Speed regulation and thermostat
- Up to 5x Ostro ONE E can be controlled by optional Panel Comfort Controller
Finish
Materials: EPP and steel.
Steel main body: White RAL 9003
End caps: Grey RAL 9005
Installation
Ostro ONE C and Ostro ONE E must be mounted horizontally. They can be mounted side by side. To enable the correct method of installing Ostro Air Curtain mounting brackets are available as accessories. These are available as horizontal holder sets.
Controls
Panel COMFORT:
Control of up to two Ostro Air Curtains Curtain is managed using the COMFORT control panel, which allows adjustment of the airflow and air temperature.
Magnetic door switch:
A magnetic door switch is available to manage Ostro Air Curtain in conjunction with the operation of the doorway
